Willow folding wizard

why can't all the panels of a folded brochure be the same size?

When it comes to folds, the two outer panels usually are the same size, with each additional panel measuring 1/16th of an inch shorter for text weight or 3/32nd of an inch for cover 8pt to 12pt. You need to adjust the panel sizes to ensure that the difference between the outer panels and the other(s) adheres to this rule.

choose the type of fold you plan to specify

Use our Folding Wizard to calculate the panel sizes to use when creating your layout. To begin, choose the fold type:

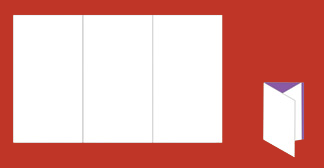

3 panel Standard 3-Panel
Only the third panel is reduced, or alternatively keep all panels equal and keep all copy and art in from the trim.

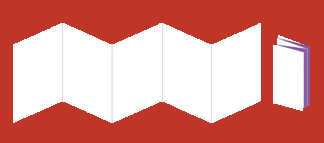

Accordian Fold
All panels are equal.

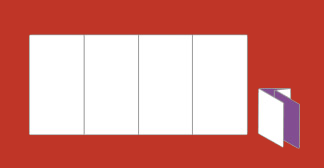

Double Parallel Fold: 4-Panel
4-panel: only the last panel is reduced to compensate for the push out that will occur.

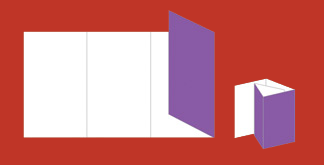

Roll Fold: 4-, 5-, 6-, 7- or 8-Panel
The outer two panels are equal and each panel is reduced consecutively.

Gate Fold 4-Panel
The center two panels are full size and the outer two panels are reduced.
